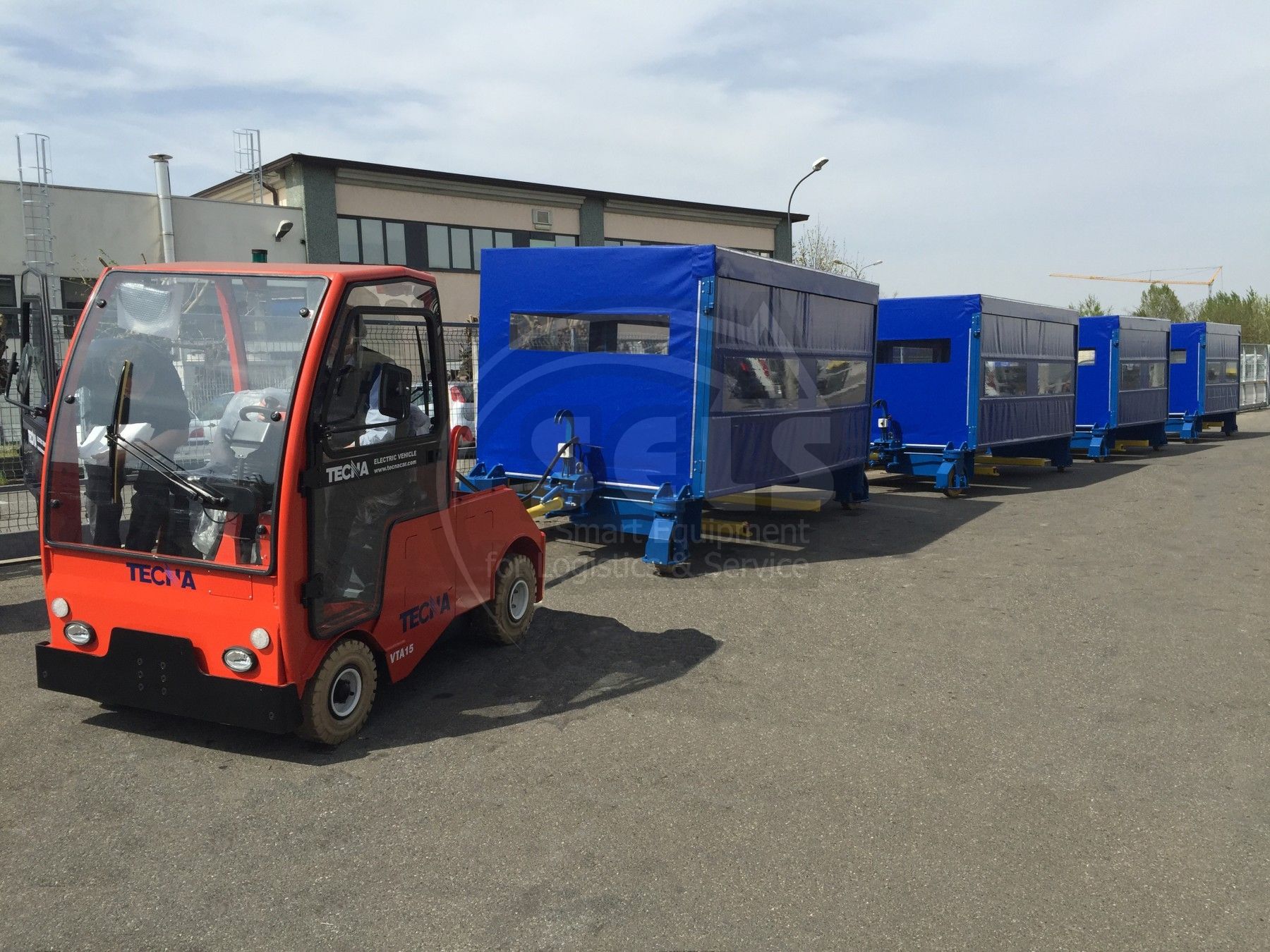

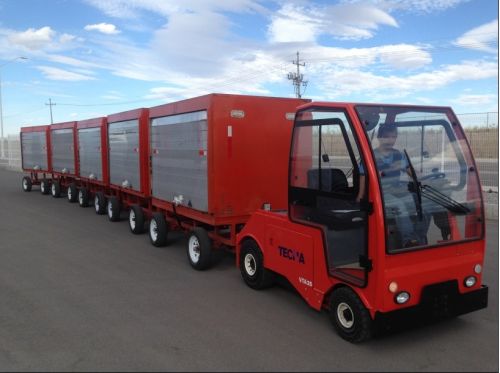

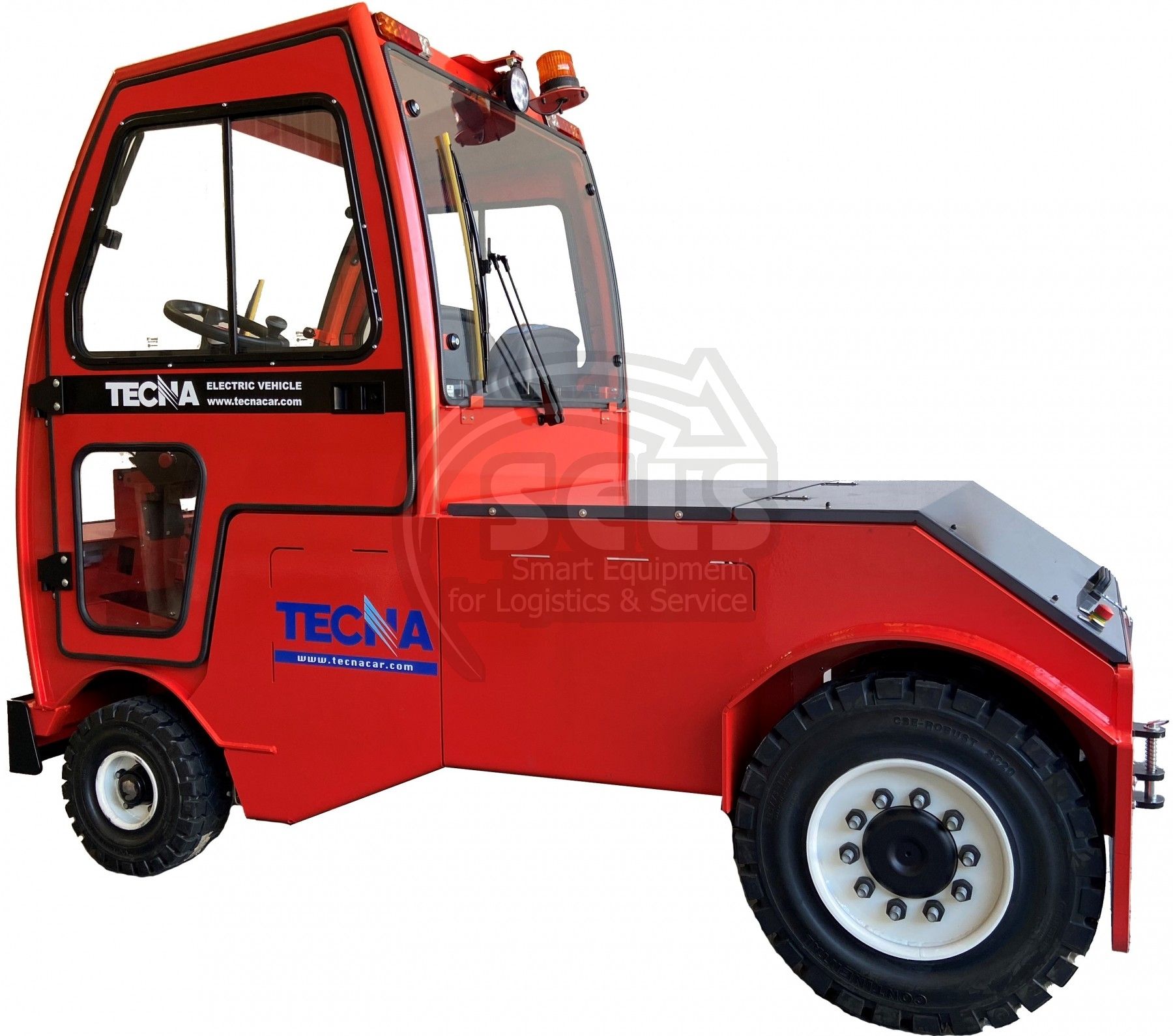

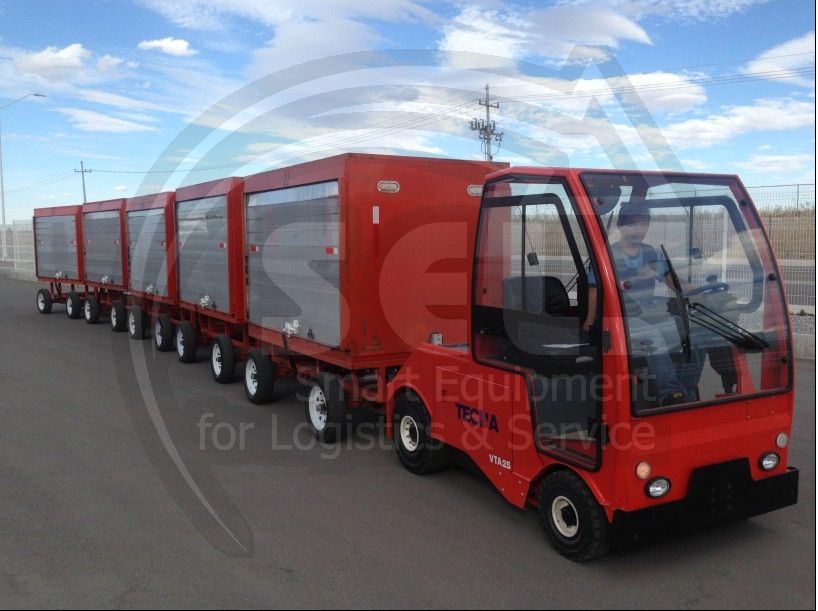

Powerful, versatile and economical tow tractor to pull trailers up to 40,000 kg.

Robust and powerful for both indoor and outdoor operations over long distances. Our VTA 410-440 is the answer to the operational demands with heavy trailers of up to a total weight of 40,000 kg. The cab is floating on hydraulic shock absorbers to transmit maximum comfort to the driver, eliminating vibrations and reducing the impact and noise level.

Ergonomics
The new range of seats with different levels of suspension, its integral armrest adjustable in height and depth in a single action, together with the telescopic and tilting column gives the driver maximum ergonomics.

Flux Vector Control
Latest technology programming. Intelligent adaptation to work needs, determining in each case the minimum battery consumption.

Display
The programming for the maintenance and the adjustment of the parameters can be done from the big screen, as well as through the Tecna service tool (TST).

Battery
Lateral removal of the battery in all models. Li-ion batteries available throughout the range.

High performance motors
The high power of the two traction motors, all asynchronous (maintenance free) guarantees an extremely high dynamic response in any situation.

Brakes
Braking system based on fully encapsulated oil-coated discs.

Comfort

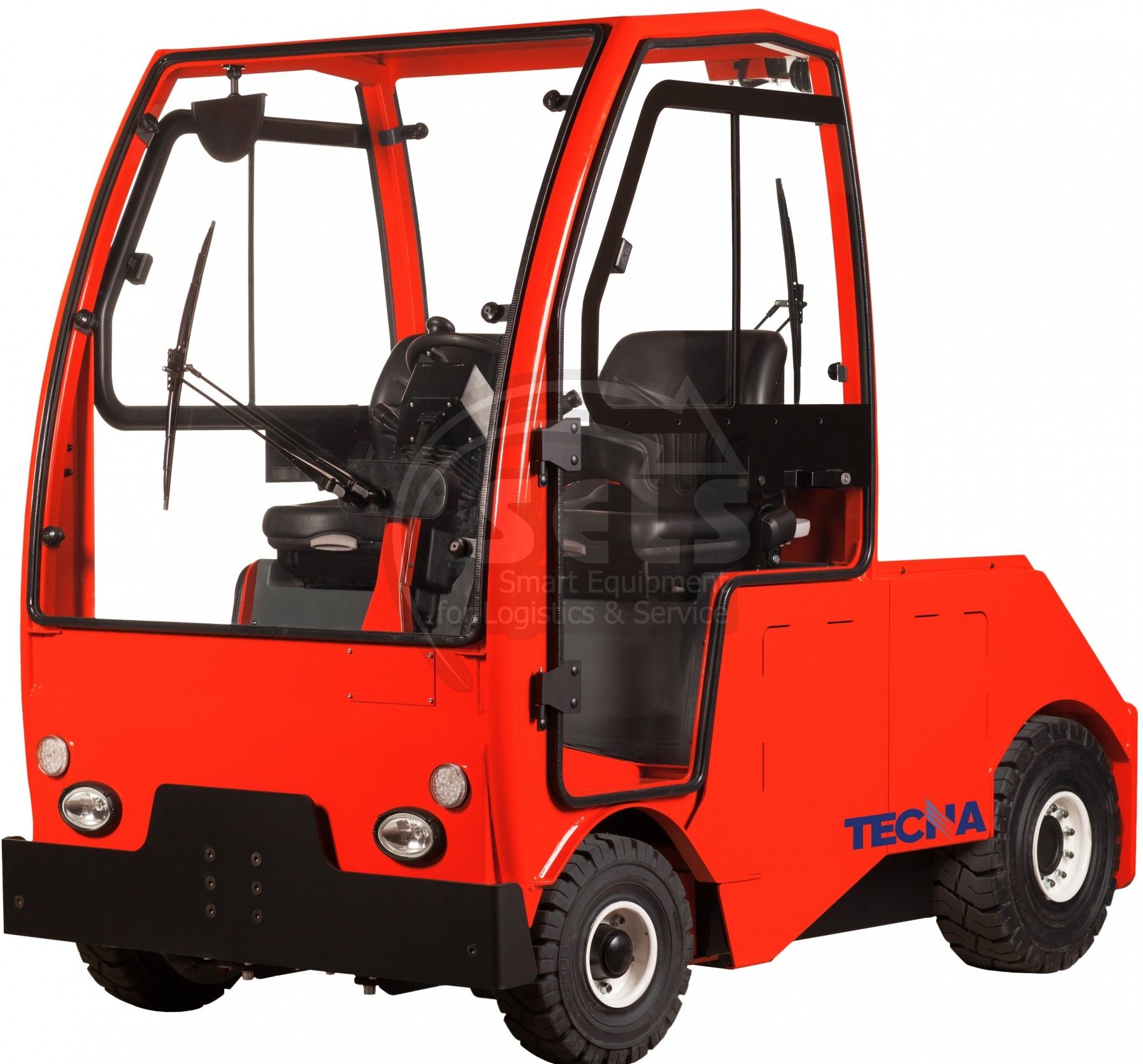

The protective cabin is floating on hydraulic shock absorbers to transmit maximum comfort to the driver, eliminating vibrations and reducing the noise level.

More information about VTA 400 available on Tecnacar website.

  • VTA440
  • VTA400
  • VTA400
  • VTA400
  • VTA400
  • VTA400
  • VTA400

Technical Data

ModelsVTA 410 / VTA 415 / VTA 420 / VTA 425 / VTA 430 / VTA 440
CapacitiesFrom 10,000 kg to 40,000 kg
Nominal bar shootingFrom 2,000 N to 8,000 N
WheelbaseFrom 1,392 mm to 1,625 mm
WeightFrom 2,525 kg to 3,950 kg
Track width in front1,140 mm
Track width behind1,115 mm
Total height2,074 mm
Total lengthFrom 2,233 mm to 2,491 mm
Total widthFrom 1,300 mm to 1,350 mm
Turning radiusFrom 2,526 mm to 2,824 mm
Travel speed with/without load12/25 km/h
Maximum shot at the barFrom 10,780 N to 19,500 N
Motor powerFrom 2 x 4.3 kW (8.6 kW) to 2 x 12.5 (25 kw)
Batteries48V 630 Ah / 48V 750 Ah / 80V 450 Ah / 80V 625 Ah
